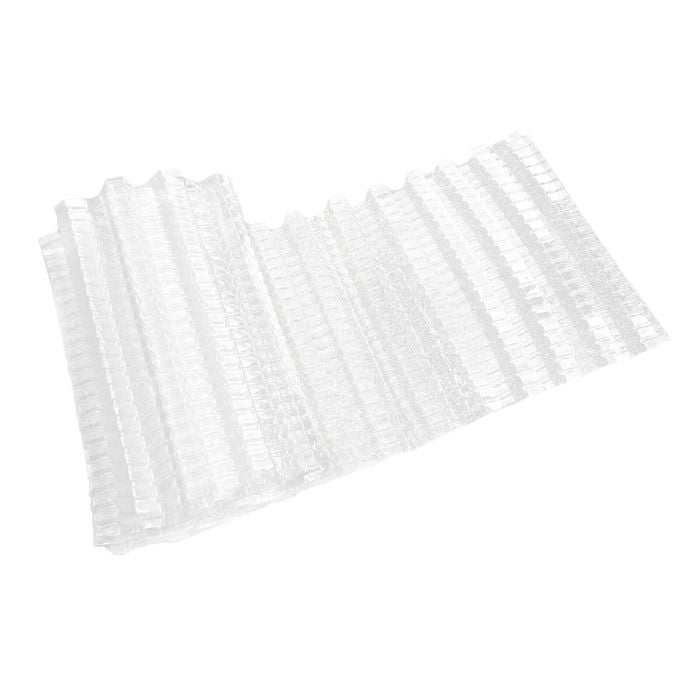

Masons 45mm x 650mm x 6m Insulation Baffle

I/N: 0699011

$137.86

How to purchase

Click & Collect

Select a store for availability

In-store

Select a store for availability

Delivery

Enter postcode or suburb for estimate

  • Designed to separate roof underlay from bulk insulation where these elements may come into contact, or the required 25mm gap between them cannot be maintained. It assists in meeting the requirements of NZS 4246:2016.6.2.10.

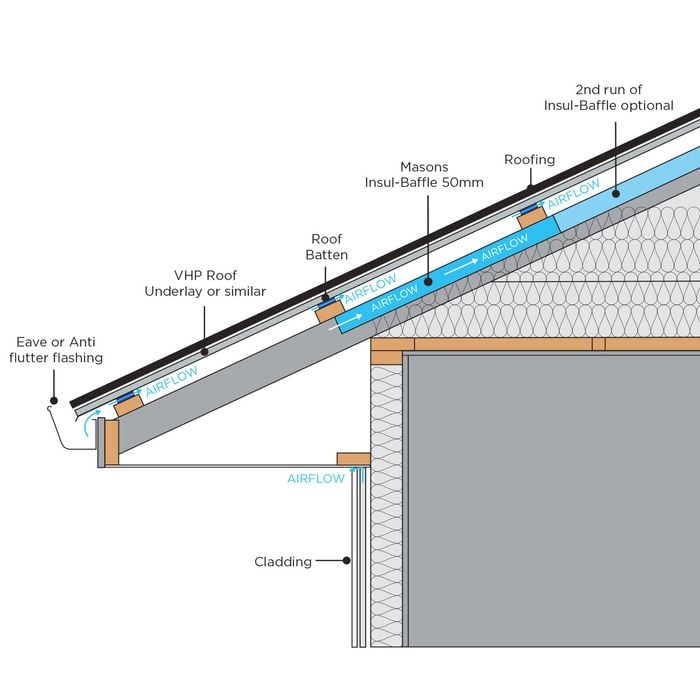

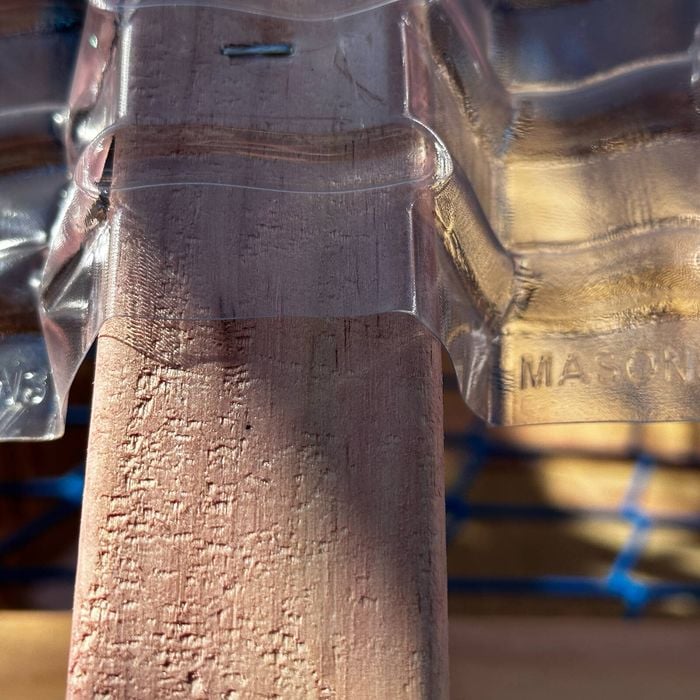

  • Also allows a path for air movement as part of a passive–stack ventilated roof space design. Masons Insul-Baffle incorporates ‘Dragon Channels’ to increase rigidity and aid air to cross flow.
  • Separates roof underlay from bulk insulation to create room for air flow

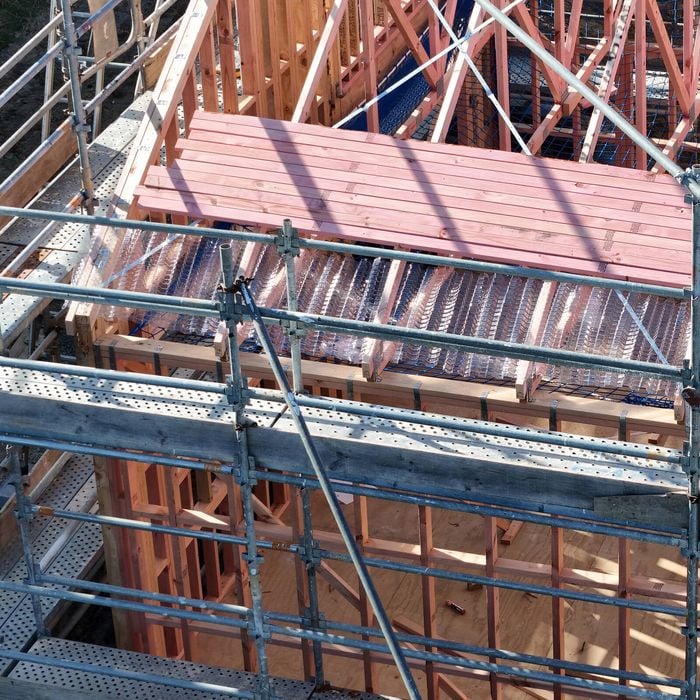

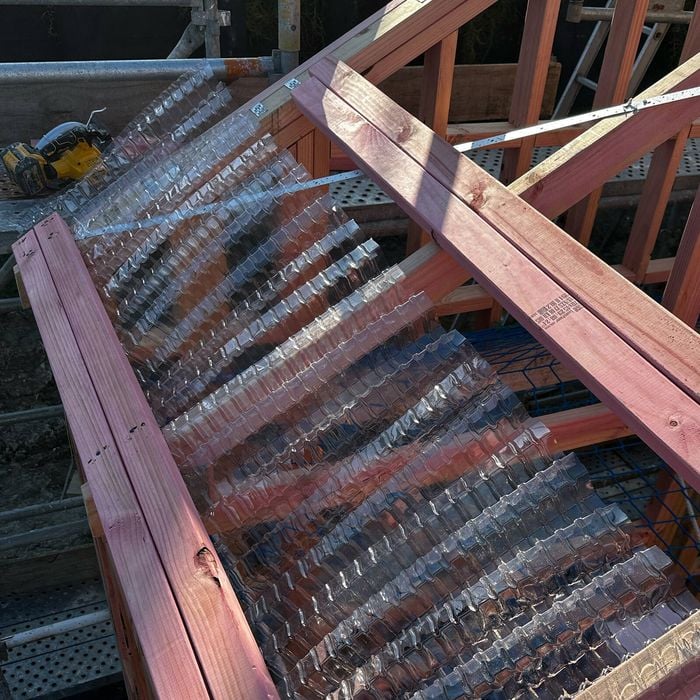

To separate roof underlay from bulk insulation to create room for air flow. Masons Insul-Baffle is a crenelated semi-rigid synthetic spacer. Made from clear PET plastic. It is installed over the rafters or truss top chords, typically near the eaves, where it is likely bulk thermal insulation may push up against the roof underlay.
